Europe is witnessing a major breakthrough in electric vehicle (EV) battery technology, courtesy of ElevenEs. Their newly introduced edge574 blade cell offers more than just improved specifications—it promises to transform how electric vehicles integrate into daily life, especially for those frustrated by lengthy charging times.
Rapid Charging: From 10% to 80% in Just 12 Minutes
The flagship attribute of the edge574 lies in its charging speed. This battery can be charged from 10% to 80% within only 12 minutes, a figure validated by multiple sources. ElevenEs summarizes this feat as “gaining one kilometer of driving range per second of charging.” To put it in perspective, this means a staggering 66 kilometers of driving range per minute at room temperature (≥ 25°C), far surpassing the charging speeds of most current EVs.
While ambient temperature influences performance, the battery remains highly efficient even in chillier conditions. At 10°C, common in northern Europe, the battery charges in just 18 minutes, restoring roughly 44 kilometers of range per minute. Even at freezing point (0°C), it sustains a charge rate equating to 25 kilometers per minute, with a powerful peak charging capacity of 415 kW, well beyond typical industry rates.
Fast charging with the edge574 is not just about speed; it’s about unlocking new possibilities. ElevenEs notes that a battery pack made of 210 cells can achieve peak charging power up to 1MW, paving the way for future ultra-fast charging networks that could make electric vehicles the preferred option even for long-distance travel.
Durability That Outlasts Many Engines
Battery longevity is often a sticking point with EVs, but the edge574 sets a new benchmark with a remarkable operational life of at least 500,000 kilometers. This endurance outlives the service life of many combustion engines, reducing the need for replacements and minimizing environmental footprint, benefiting drivers and the planet alike.
Though the lithium iron phosphate (LFP) chemistry used isn’t novel, ElevenEs has enhanced its capabilities through several key upgrades:
- 15% decrease in internal resistance (DCIR), which reduces heat generation and improves safety and energy efficiency.
- Innovative electrolyte formulation that enhances ion mobility and slows degradation.
- Refined electrode and casing design, featuring a slimmer but sturdy metal enclosure and enlarged terminals for higher current delivery.

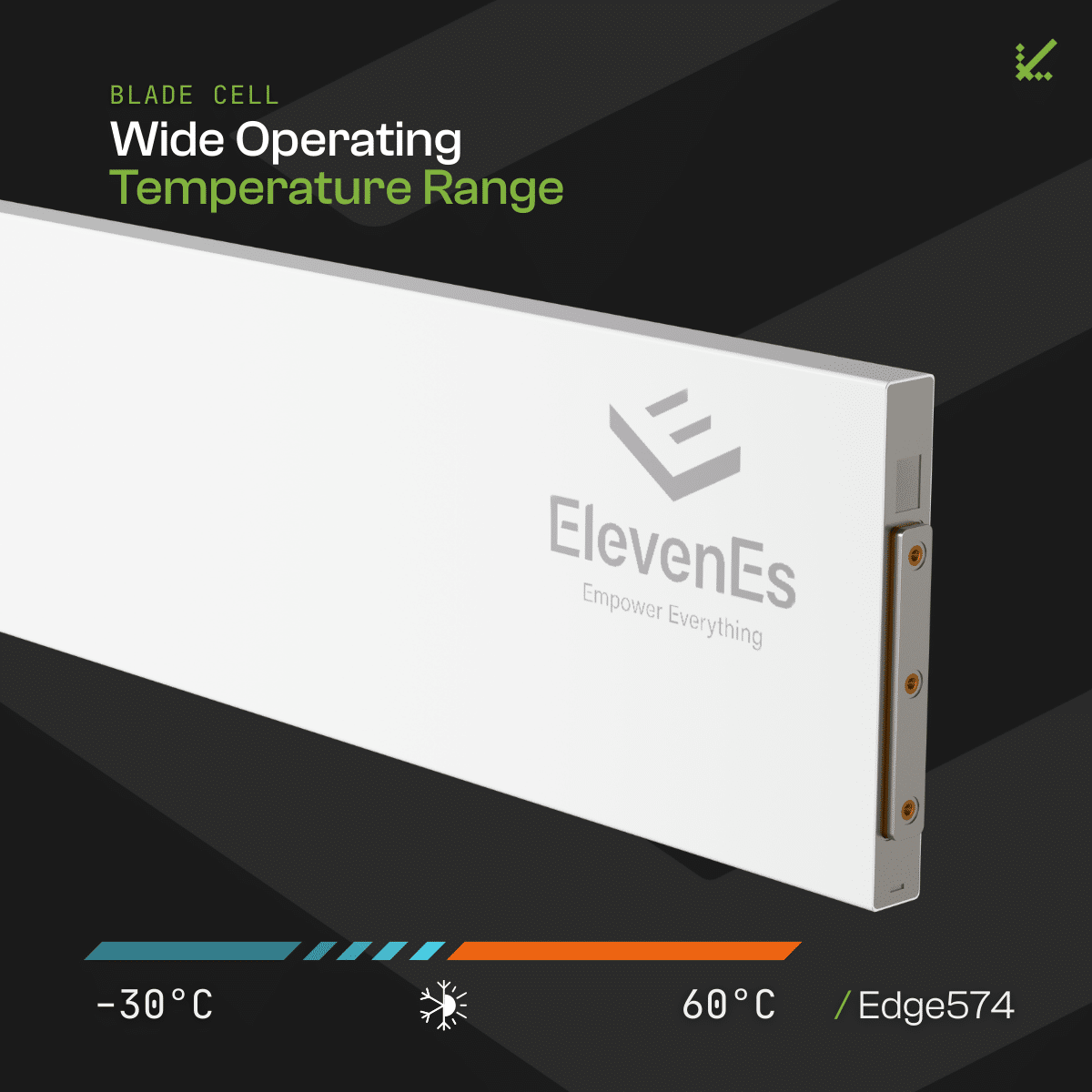

Designed for challenging conditions, the battery operates efficiently between -30°C and +60°C and retains full capacity up to 55°C. Even at -10°C, it holds approximately 75% of its capacity, making it well suited for use in climates with extreme cold or heat.
Advanced Blade Cell Architecture for Versatile Applications
One of the defining elements of the edge574 is its unique blade cell form factor. This “tall and slender” design supports both cell-to-pack (CTP) and cell-to-body (CTB) integrations, optimizing space utilization. This translates to higher energy density—up to 190 Wh/kg gravimetric and 420 Wh/l volumetric at the cell level—and enables flexible battery placement within vehicle frameworks.
The architecture allows seamless integration within a car’s chassis without compromising safety standards. This facilitates the production of lighter, sleeker vehicles with increased cabin and cargo space. The upgraded thinner casing and larger terminals are instrumental in supporting the elevated current demands required for rapid charging capabilities.
